Wrought (Butt-weld) Fitting

Wrought-(Butt-weld)-Fitting
Fittings Form 90° and 45° Long Radius(LR) Elbows, 90° and 45° Short Radius(SR) Elbows, Equal Tee, Reducing Tee, Reducer, Concentric Reducer, Eccentric Reducer, Stub End, Lap Joint Stub Ends, End Cap, Pipe Nipples
Dimension Specifications ANSI B16.9, ANSI B16.28, MSS-SP-43
Size 1/8” NB TO 48” NB
Thickness SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness
Stainless steel ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon steel ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Low temperature carbon steel ASTM A420 WPL3 / A420WPL6
Alloy steel ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex steel ASTM A 815 UNS NO S 31803, S 32205

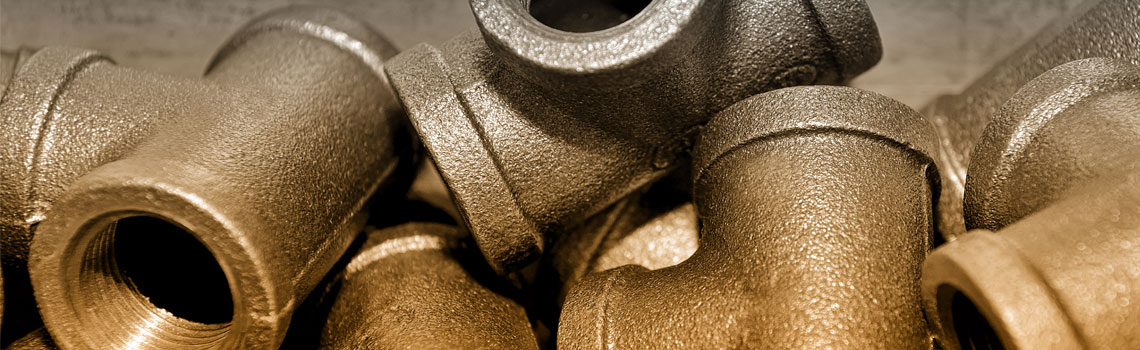

Forged Fitting

Forged-Fitting
Forged Fittings Type Socket Weld Threaded
Pressure Class 2000LBS, 3000LBS, 6000LBS, 9000LBS 2000LBS,3000LBS, 6000LBS, 9000LBS
Fittings Form 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Pipe Cap, Union, Reducer Insert, Boss, Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Branch Outlet Butt Weld, 90° Elbow Outlet Butt Weld, Lateral Outlet Butt Weld, Nipple Branch Outlet Butt Weld 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Reducing Coupling, Pipe Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Union, Hex Nipple, Street Elbow, Bull Plug, Boss, Swage Nipple, Pipe Nipple, Adapter, Union (Male x Female), Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Nipple Branch Outlet
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100) 1/8″~4″ (DN6~DN100)
Thread —– ISO, DIN, NPT, BSPT
Carbon Steel ASTMA 105/A694/ A350 LF3/A350 LF2
F42, F46, F52, F56, F60, F65, F70
Stainless Steel ASTM / ASME A/SA 182
F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Duplex & Super Duplex Steel ASTM / ASME A/SA 182
F44, F45, F51, F53, F55, F60, F61.
Alloy Steel Flanges ASTM A182
F1, F5, F9, F11, F22, F91
Nickel Alloy ASTM / ASME SB 564 / 160 / 472
UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601),
UNS 6625 (INCONEL 625),UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
